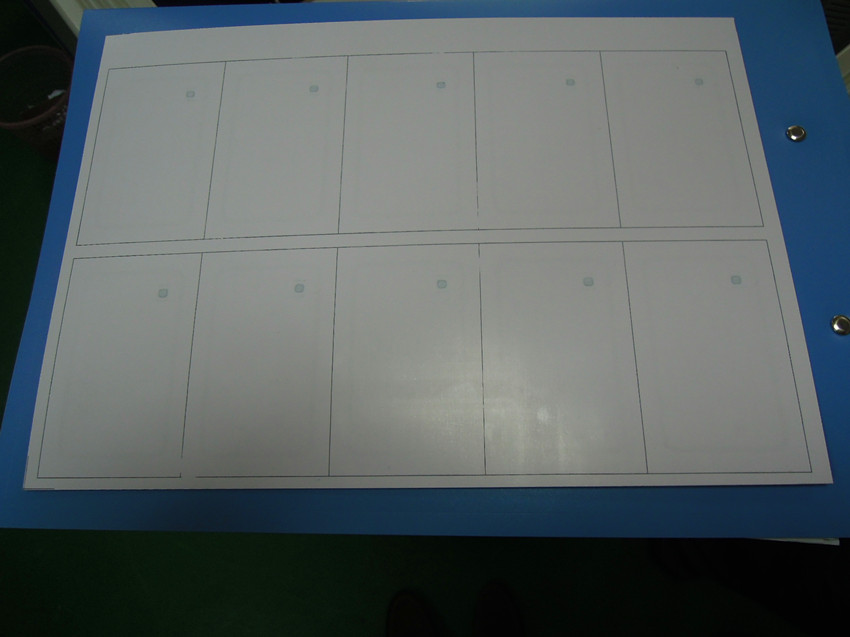

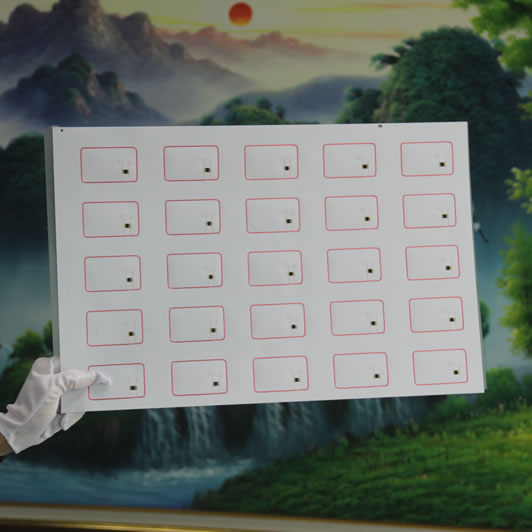

125 Khz RFID Inlay
Our inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance.
The inlays have a completely flat finish and bring numerous benefits to card manufacturers.
We make the card manufacturer’s job easier without sacrificing quality.
| Product | 125KHz RFID Inlay |
| Material | PVC, PC, PET |
| Color | White or Transparent |
| Standard | ISO14443, ISO15693, ISO 18000, etc. |
| Dimension | 310*468mm, Max. size 520*420mm, A4 210*297mm, etc. |
| Layout | 2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized. |
| Thickness | HF: normal 0.45mm, 0.5mm, min.0.3mm LF: normal 0.6mm, Min. 0.5mm UHF: 0.6mm, 0.5mm |
| Frequency | 100-150 KHz, 13.56 MHz, 860-960 MHz |
| Protocal | ISO/IEC 11784/785, ISO14443A, ISO15693, ISO18000-6C |
| Chip | LF: TK 4100, EM 4200, EM 4305, T5577, HID, HITAG 1, HITAG 2, HITAG S, etc HF: FM11RF08, MF S50, FM11RF32N, MF S70(4KB), ICODE SLI, ICODE SLI-X, ICODE SLI-S, MF UTL EV1, MF UTL-C, |
| Memory | 512 bits, 128 bits, 1K Byte, 4K Byte, 144 Byte, 888 Byte, etc |
| Antenna | HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding LF: Pre-winding Copper Coli, AL Etching UHF: AL Etching |
| Read Range | more than 50mm with our reader |
| Work Temperature | -25℃ ~ +55℃ |
| Store Temperature | -25℃ ~ +65℃ |
